Target 1 Flight Path 13

A general-purpose flight path that was configured for making total cross section measurements.

Contacts

  • thumbnail of Paul Koehler
  • Instrument Scientist
  • Paul Koehler
  • (505) 606-0743
  • Email

Instrument Specifications

FP-13 is a general-purpose flight path that was configured for making total cross section measurements. It views the upper-tier cold hydrogen moderator. The current configuration uses an evacuated neutron guide for the first 30 m, with a collimator in air at 30 m. The beam is then transported in an eight-inch vacuum pipe to 60 m, after which there is about 5 m available for experiment setup. With 6 mm diameter collimation at 30 m, the beam spot is approx. 13 cm square at 63 m.

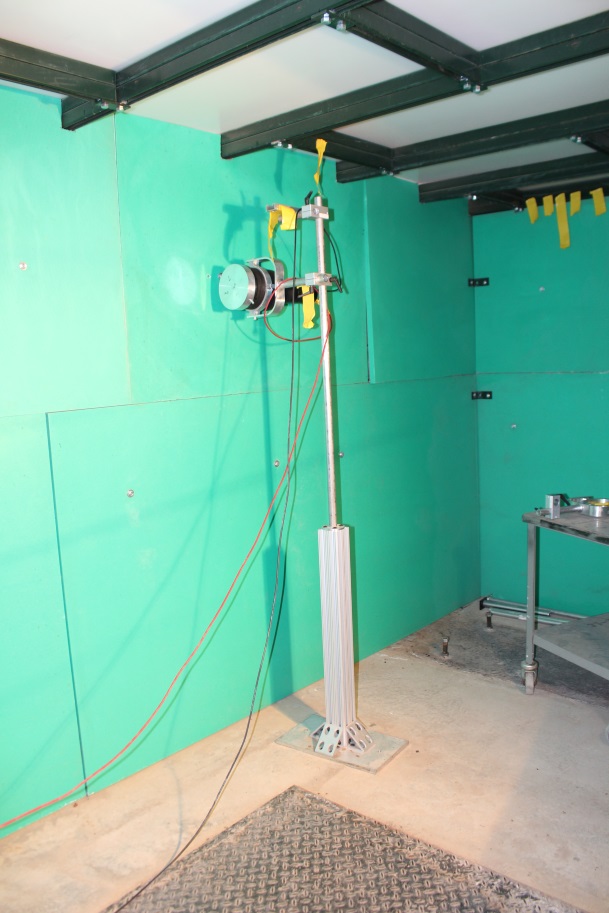

cross section detector FP-13

Total cross section detector set up at 63m in FP-13.
